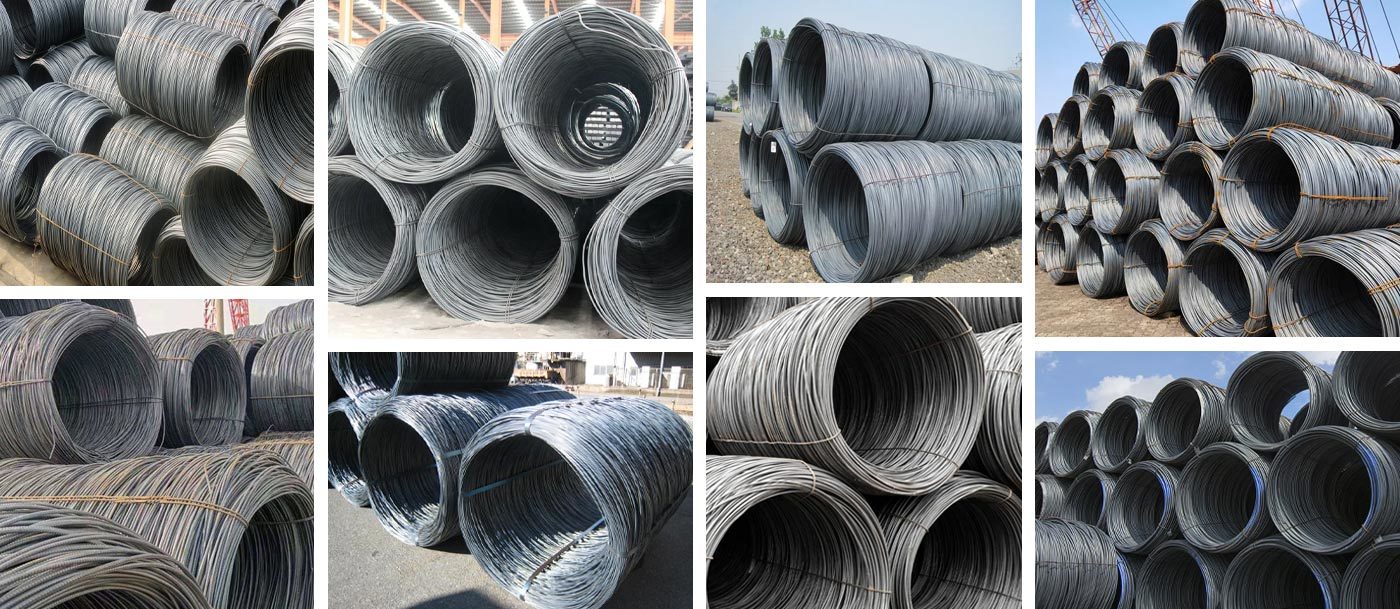

SAE-1006 Steel Wire Rod

Steel grade G10060 (SAE 1006) - low carbon material from which wire rod and round wire are produced in riots or cut rods. Standart: ASTM A510M. Standard specification for general requirements for carbon steel wire rod and round wire. Classification: Low-carbon steel.

Classification :

Wire Rod

+8619157188105

anna@xpy-metal.com

E-mail

PRODUCT DETAILS

SAE-1006 Steel Wire Rod Description

SAE-1006 Wire Rod Specifications
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)	Nominal Weight (kg/m)	Permissible out – of Roundness(mm)
5.5	-/+ 0.3	0.238	0.186	0.48
6.0	-/+ 0.3	0.283	0.222
6.5	-/+ 0.3	0.332	0.260
7.0	-/+ 0.4	0.385	0.302	0.64
(*)8.0	-/+ 0.4	0.503	0.395
(**)10.0	-/+ 0.4	0.785	0.617
(**)12.0	-/+ 0.4	1.131	0.888
(**)14.0	-/+ 0.4	1.539	1.208
(**)16.0	-/+ 0.5	2.011	1.578	0.80

SAE-1006 Wire Rod Chemical Composition
Grade	C% (max)	Mn%	Si% (max)	S% (max)	P% (max)	Cr% (max)	Ni% (max)	Cu% (max)
SAE 1006	0.08	0.30-0.40	0.08	0.025	0.020	0.10	0.10	0.15

Scope of Application

Steel wire is widely used in the manufacture of many wire products.

Packing and delivery

We will follow the principle of "quality first, customer first, abide by the agreement, pioneering and innovative", and strive to develop new products and pursue first-class technology. To provide the majority of users with high quality products, satisfactory service.

APPLICATION FIELD

All products are produced according to ASTM standards, JIS standards, DIN standards, BS standards and other standards. It is suitable for automobile manufacturing, aerospace, chemical energy, construction, electric power and other fields.
